FL-MF Fiber Laser Marking Machine
The FL-MF Fiber Laser Marking Machine delivers permanent, high-speed marking for metals and selected engineering plastics, with 20W, 30W, 50W and 100W configurations.
1 / 5 - CE-compliant & export-ready
- 1-year limited warranty (extendable on core parts)
- 30-day money-back guarantee
- Free lifetime technical support
- Worldwide shipping & logistics handled
Contact Us
Send Us a Message
An applications engineer will reply with a real configuration and price range within one business day.
Tell us your material, thickness & throughput — an applications engineer replies with a real configuration and price range within one business day.
Industrial Fiber Laser Marker
High-Speed Fiber Laser Marking for Permanent Industrial Identification
The FL-MF Fiber Laser Marking Machine is designed for permanent, high-speed marking on a wide range of metal and selected plastic materials. It is suitable for manufacturers requiring serial numbers, QR codes, logos, barcodes, graphics and traceability information with excellent precision and repeatability. Featuring a maintenance-free fiber laser source, advanced galvanometer scanning system and user-friendly software, the machine delivers stable performance, low operating costs and long service life for continuous industrial production.
- 20 W / 30 W / 50 W / 100 WLaser Power
- 70 ×70 -300 ×300 mmMarking Area
- 1064 nmWavelength
- Up to 7000 mm/sMaximum Marking Speed
Manufacturing Capability
Built for Reliable Industrial Production
FerroLaser is a high-tech enterprise specializing in the R&D, production and sales of fiber laser marking machines. We are committed to providing global customers with high-quality products and professional laser solutions.
- 10+Years of Experience
- 100+Countries Served
- 5000+Satisfied Customers
- 50+R&D Engineers

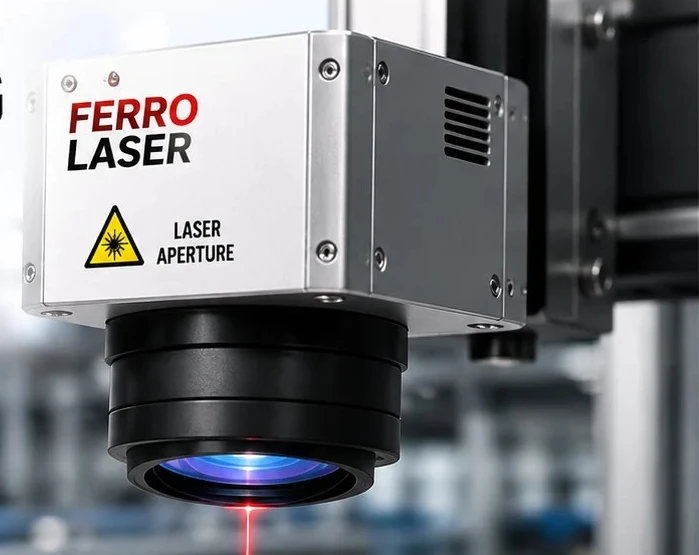

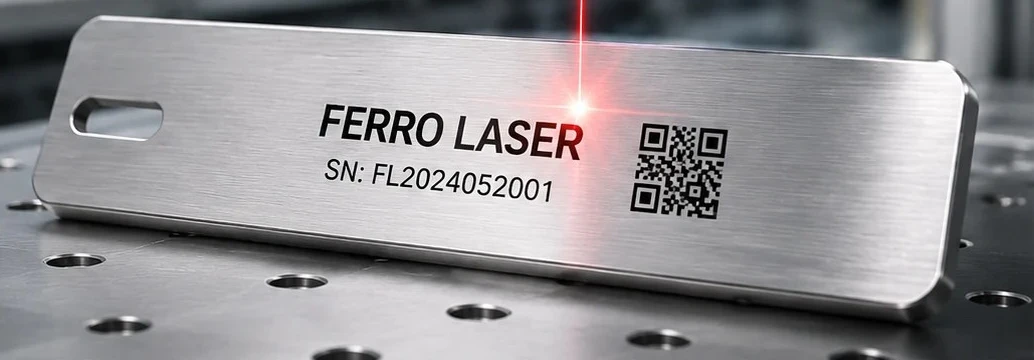

Max. 7000 mm/s
High-Speed Laser Marking
High-performance galvanometer scanning system enables fast and accurate marking for mass production while maintaining consistent marking quality across different products.
- High PrecisionFast and accurate marking
- High SpeedUp to 7000 mm/s
- High EfficiencyIdeal for mass production
- Stable PerformanceConsistent quality output

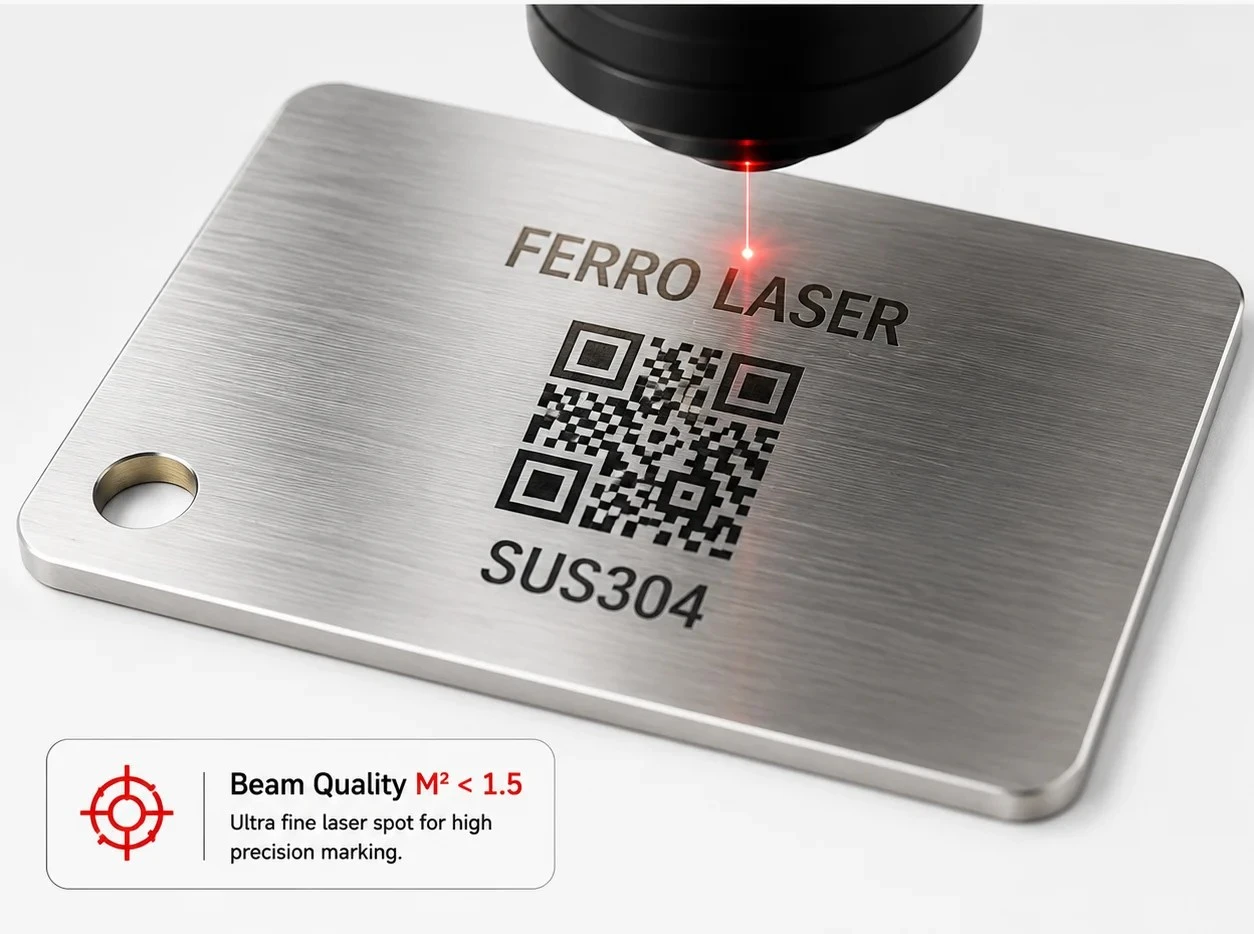

Beam Quality M²＜1.5
Ultra Fine Precision
Small focused laser spot produces sharp text, logos, QR codes and detailed graphics suitable for precision industrial applications.
- Beam QualityM² < 1.5

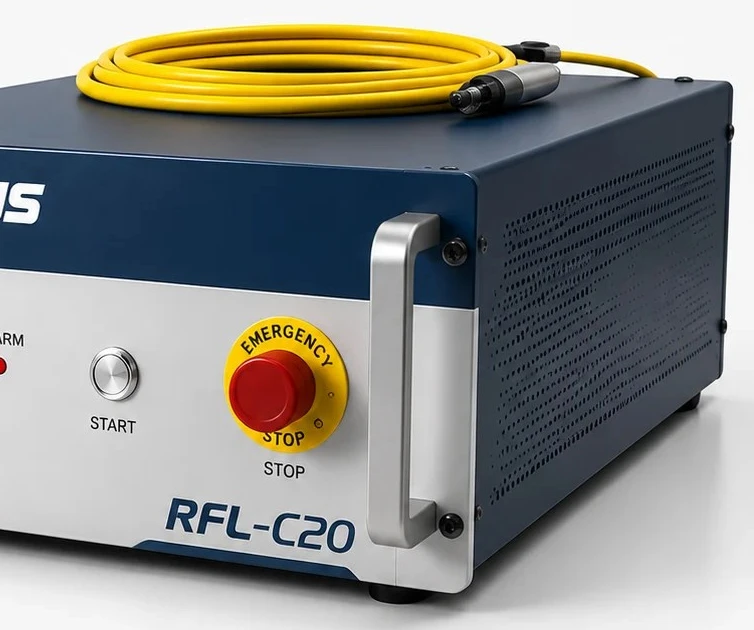

Laser Lifetime 100,000 hours
Long Service Life
Fiber laser source requires no consumables and offers excellent stability with an expected service life of approximately 100,000 hours.
- 100,000 HoursUltra-long lifetime, reducing replacement costs
- High StabilityExcellent beam quality and stable performance for long-term operation
- Maintenance FreeNo consumables, minimal maintenance and low running cost
- Reliable and DurableDesigned for industrial environments with high reliability
Materials and Industries
Wide Material Compatibility
Suitable for marking stainless steel, carbon steel, aluminum, brass, copper, titanium, coated metals and engineering plastics with minimal thermal impact when suitable parameters are used.
Multiple Material Support
Stainless Steel
SS / SUS Series
Carbon Steel
CS / Mild Steel
Aluminum
Al / Aluminum Alloys
Brass
Brass / Copper Alloys
Copper
Cu / Copper
Titanium
Ti / Titanium Alloys
Coated Metals
Anodized / Painted / Plated
Engineering Plastics
PA / ABS / PC / PEEK / PVC
Material and Workpiece Guidance
| Material / Workpiece | Typical Marking Size | Recommended Configuration | Process Note |
|---|---|---|---|
| Stainless Steel | Up to 110 × 110 mm per marking cycle | 30 W /50 W Fiber Laser | Black marking, engraving, serial numbers |
| Aluminum Alloy | Up to 150 × 150 mm per marking cycle | 30 W Fiber Laser | High-speed white marking |
| Brass & Copper | Up to 110 × 110 mm per marking cycle | 30 W / 50 W Fiber Laser | Clear logo and deep engraving |
| Engineering Plastics (ABS, PC, PA) | Up to 110 × 110 mm per marking cycle | 20 W Fiber Laser | Permanent non-contact marking |
Industry Applications
| Industry | Typical Workpiece | Customer Pain Point | How This Machine Helps |
|---|---|---|---|
| Electronics | PCB, Connectors, IC Parts | Tiny identification marks | High precision permanent marking |
| Automotive | Engine Parts, Bearings, Gears | Traceability requirements | Fast serial number and QR code marking |
| Hardware & Tools | Wrenches, Blades, Fasteners | Wear-resistant marking | Permanent deep laser engraving |
| Medical Devices | Surgical Instruments | Sterilization-resistant identification | High contrast permanent marking |
Technical Data
Specifications
General Specifications
| Model | FL-MF |
|---|---|
| Machine Dimensions | 700 × 500 × 1450 mm |
| Net Weight | Approximately 100 kg |
| Warranty | 1 Year |
Product-Specific Specifications
| Laser Power | 20 W / 30 W / 50 W / 100 W |
|---|---|
| Marking Area | 70 × 70mm -300 ×300 mm |
| Wavelength | 1064 nm |
| Maximum Marking Speed | Up to 7000 mm/s |
Electrical and Environment
| Voltage / Frequency | AC 220 V ±10%, 50/60Hz (110V Optional) |
|---|---|
| Rated Power Consumption | ≤ 800W |
| Operating Environment | 10–35°C, Humidity 30–80% |
| Safety Requirement | Proper grounding, dust-free environment, laser safety goggles recommended |
Need Help Choosing a Configuration?
Tell us your material, marking content, workpiece size and production target.
Verified Marking Results
Processing Samples
Stainless Steel
- Marking Content
- Logo + QR Code
- Marking Area
- 100×100mm
- Laser Power
- 20 W
- Speed
- 5000 mm/s
- Result
- Clear black marking with high contrast
Aluminum
- Marking Content
- Serial Number
- Marking Area
- 150×150mm
- Laser Power
- 30 W
- Speed
- 6000 mm/s
- Result
- Bright permanent marking
Brass
- Marking Content
- Company Logo
- Marking Area
- 100×100mm
- Laser Power
- 30 W
- Speed
- 4500 mm/s
- Result
- Fine engraving with smooth edges
Carbon Steel
- Marking Content
- Data Matrix Code
- Marking Area
- 150×150mm
- Laser Power
- 50 W
- Speed
- 5500 mm/s
- Result
- High-speed permanent marking
ABS Plastic
- Marking Content
- Product ID
- Marking Area
- 110×110mm
- Laser Power
- 20 W
- Speed
- 4000 mm/s
- Result
- High-contrast marking without deformation
Titanium
- Marking Content
- Medical Serial Number
- Marking Area
- 100×100mm
- Laser Power
- 30 W
- Speed
- 3500 mm/s
- Result
- Uniform, corrosion-resistant marking
Core Systems
Industrial Components
Raycus / MAX / JPT (Optional)
Fiber Laser Source
Generates stable laser beam
High efficiency, maintenance-free, long lifetime
Sino-Galvo (Optional)
Galvanometer
High-speed beam positioning
Improves marking speed and accuracy
Wavelength-specific Lens
F-theta Lens
Focuses laser beam
Ensures uniform marking quality across the entire field
- Precise FocusFocuses the laser beam to a precise spot
- Uniform QualityEnsures uniform marking quality
- Optical PerformanceHigh transmittance and low distortion
BJJCZ
Control Board
Laser motion control
Stable operation and powerful software compatibility
Configuration Options
| Option | Standard / Optional | Recommended For | Effect on Price / Lead Time |
|---|---|---|---|
| CCD Vision System | Optional | PCB, FPC, semiconductor and precision electronic components | Increases equipment cost and may slightly extend lead time. |
| Rotary Fixture | Optional | Cylindrical products such as bottles, cups, bearings and rings | Slight increase in price with minimal impact on delivery time. |
| Conveyor System | Optional | High-volume automated production lines | Custom design may increase both price and manufacturing time. |
| Enclosed Workstation | Optional | Safety-sensitive environments | Increased shipping size and cost |
Standard Configuration Includes
- Fiber Laser Source
- Galvanometer Scanning Head
- F-theta Lens
- EZCAD Control Software
- Industrial Workstation
- Positioning Ruler
- Foot Switch
- Tool Kit
- User Manual
- USB Cable
- Power Cable
Options Requiring Engineer Confirmation
- Rotary Fixture Diameter
- Large Marking Area Lens
- Conveyor Integration
- CCD Vision System
- Automatic Loading Platform
- Customized Fixture Design
- Smoke Purifier
- MOPA Fiber Laser Upgrade
Delivery and Support
Service, Delivery and Customer Cases
Delivery Process
| Stage | Customer Provides | FerroLaser Delivers | Estimated Time |
|---|---|---|---|
| Requirement Review | Material, workpiece size, production volume, destination country, voltage | Machine configuration recommendation, quotation, marking solution | 1 Working Day |
| Configuration & Testing | Samples, drawings, marking requirements | Marking test, sample photos/videos, test report | 3 Working Days |
| Packaging & Shipping | Trade terms, destination port, consignee information | Export wooden case, shipping documents, logistics arrangement | 7 Working Days |
| Installation & Support | Installation site, operators | User manual, remote installation guidance, operation training, after-sales support | Respond within 24 hours |
Warranty
| Item | Period |
|---|---|
| Whole Machine | 1 Year |
| Laser Source | 2 Years |
| Control System | 1 Year |
| Lifetime Technical Support | Yes |
After-Sales Response
- Online Technical Support
- WhatsApp Support
- WeChat Support
- E-mail Support
- Remote Software Diagnosis
- Video Installation Guidance
Customer Cases
Hardware Manufacturer
- Customer / Industry
- Hardware Manufacturer
- Market
- Germany
- Challenge
- Needed permanent serial number marking with high production efficiency
- Configuration
- 30W Fiber Laser
- Material / Workpiece
- Stainless Steel Hand Tools
- Solution
- High-speed laser marking with precise positioning
- Verified Result
- Increased marking efficiency and reduced maintenance costs
Automotive Parts Supplier
- Customer / Industry
- Automotive Parts Supplier
- Market
- Mexico
- Challenge
- Required durable QR code marking for product traceability
- Configuration
- 50W Fiber Laser + 200×200mm Working Area
- Material / Workpiece
- Carbon Steel Auto Components
- Solution
- Automated QR code and serial number marking
- Verified Result
- Stable 24-hour production with clear and permanent markings
Common Questions
FAQ
What Materials Can This Fiber Laser Marking Machine Mark?
The FL-MF Fiber Laser Marking Machine is suitable for stainless steel, carbon steel, aluminum, brass, copper, titanium, gold, silver, coated metals and many engineering plastics such as ABS, PC and PVC. It is ideal for marking logos, serial numbers, QR codes, barcodes and graphics. For special materials, sample testing is recommended before purchase.
How Do I Choose Between 20W, 30W and 50W Laser Power?
A 20W model is suitable for standard marking applications on metals and plastics. A 30W model provides higher marking efficiency and improved engraving capability. A 50W model is recommended for deep engraving, high-speed production and marking larger workpieces. Our engineers can recommend the most suitable configuration based on your material and production requirements.
Can This Machine Perform Deep Engraving?
Yes. Fiber laser marking machines can perform deep engraving on many metal materials by adjusting laser power, frequency, speed and the number of marking passes. Higher-power models such as 50W or above generally achieve faster and deeper engraving results. The achievable depth depends on the material type and processing requirements.
How Do I Choose the Marking Area?
The marking area should be selected according to the maximum size of your workpiece. Smaller fields provide finer laser spot quality and higher precision, while larger fields are suitable for processing bigger products. Common options include 110 × 110 mm, 150 × 150 mm, 200 × 200 mm and 300 × 300 mm.
Does the Machine Support Rotary Marking?
Yes. An optional rotary attachment allows the machine to mark cylindrical and curved workpieces such as rings, pipes, bearings, cups and shafts. The rotary fixture is synchronized with the marking software to ensure accurate and consistent results on round surfaces.
What Is the Maintenance Cost?
Fiber laser marking machines require very little routine maintenance because the fiber laser source does not require regular consumable replacement. Operators only need to keep the lens clean, maintain a dust-free working environment and perform periodic inspections. This results in low operating costs and high long-term reliability.
