Laser Welding
High-speed welding for stainless steel, carbon steel, aluminum, galvanized steel, brass, and other supported metals, with smooth seams, low spatter, and limited heat distortion.
Reference range: 1500W–3000W; 50–100 mm/s.
FL-WW | 4-in-1 Water-Cooled Handheld Laser Welding Machine
The FerroLaser FL-WW water-cooled handheld fiber laser welding machine combines welding, cleaning, cutting, and weld seam cleaning in one industrial system. Available in 1500W, 2000W, and 3000W configurations, it supports stainless steel, carbon steel, aluminum, galvanized steel, brass, and other metal fabrication applications.
1 / 6 Indicative Price Range USD 2,999 – 4,999
Rough guide only — the exact price depends on configuration, power, automation, optics and shipping destination. Talk to our sales team for an accurate FOB quote tailored to your job.
- CE-compliant & export-ready
- 1-year limited warranty (extendable on core parts)
- 30-day money-back guarantee
- Free lifetime technical support
- Worldwide shipping & logistics handled
Get a Quote
Send Us a Message
An applications engineer will reply with a real configuration and price range within one business day.
Tell us your material, thickness & throughput — an applications engineer replies with a real configuration and price range within one business day.
Overview
1500W / 2000W / 3000WLaser power options
2 / 4 / 6 mmRecommended welding thickness
Water coolingCooling method
4-in-1Welding, cleaning, cutting, weld cleaning
Capabilities
Laser Cleaning
Non-contact removal of rust, paint, oil, oxides, and surface contamination without chemical or abrasive consumables. Cleaning width depends on the selected configuration.
Laser Cutting
Flexible cutting of thin stainless steel, carbon steel, aluminum, and other supported workpieces without changing to a separate machine.
Weld Seam Cleaning
Post-weld removal of oxidation colors, residue, and discoloration to improve appearance and reduce manual polishing.
Applications
| Material | Thickness | Recommended Configuration | Process Note |
|---|---|---|---|
| Stainless steel | 0.5–5 mm | 1500W–3000W | Smooth weld appearance |
| Carbon steel | 1–6 mm | 1500W–3000W | High welding efficiency |
| Aluminum | 1–5 mm | Wire feeder recommended | Process setup should limit porosity |
| Galvanized steel | 0.5–4 mm | 1500W–2000W | Low-spatter process setup |
| Brass or copper | 1–3 mm | 2000W reference | Engineering review for reflective material |
Typical applications include cabinets, kitchen equipment, furniture, automotive parts, sheet metal fabrication, doors and windows, hardware, advertising structures, and custom metal products.
Reference Welding Parameters
| Material | Thickness | Joint | Power | Wire | Speed |
|---|---|---|---|---|---|
| Stainless steel | 1 mm | Butt | 1500W | No | 80–100 mm/s |
| Stainless steel | 2 mm | Lap | 1500W | Yes | 60–80 mm/s |
| Carbon steel | 3 mm | Butt | 2000W | Yes | 50–70 mm/s |
| Aluminum | 2 mm | Butt | 2000W | Yes | 40–60 mm/s |
| Galvanized steel | 2 mm | Lap | 1500W | Yes | 60–80 mm/s |
| Stainless steel | 5 mm | Butt | 3000W | Yes | 30–50 mm/s |
These values are starting references. Final parameters depend on material grade, fit-up, shielding gas, wire, joint design, and required result.
Additional Application Coverage
| Application | Workpiece | Common Challenge | FL-WW Benefit |
|---|---|---|---|
| Kitchen Equipment | Sinks, tables | Polishing required | Smooth weld |
| Sheet Metal Fabrication | Cabinets, boxes | Slow welding speed | High efficiency |
| Furniture | Metal frames | Deformation | Low heat input |
| Automotive Parts | Brackets | High labor cost | Easy operation |
| Door & Window | Railings, gates | Inconsistent quality | Stable welding |
| Advertising | Metal letters | Difficult corners | Flexible welding |
Samples
| Material | Thickness | Joint Type | Laser Power | Wire | Welding Speed | Image |
|---|---|---|---|---|---|---|

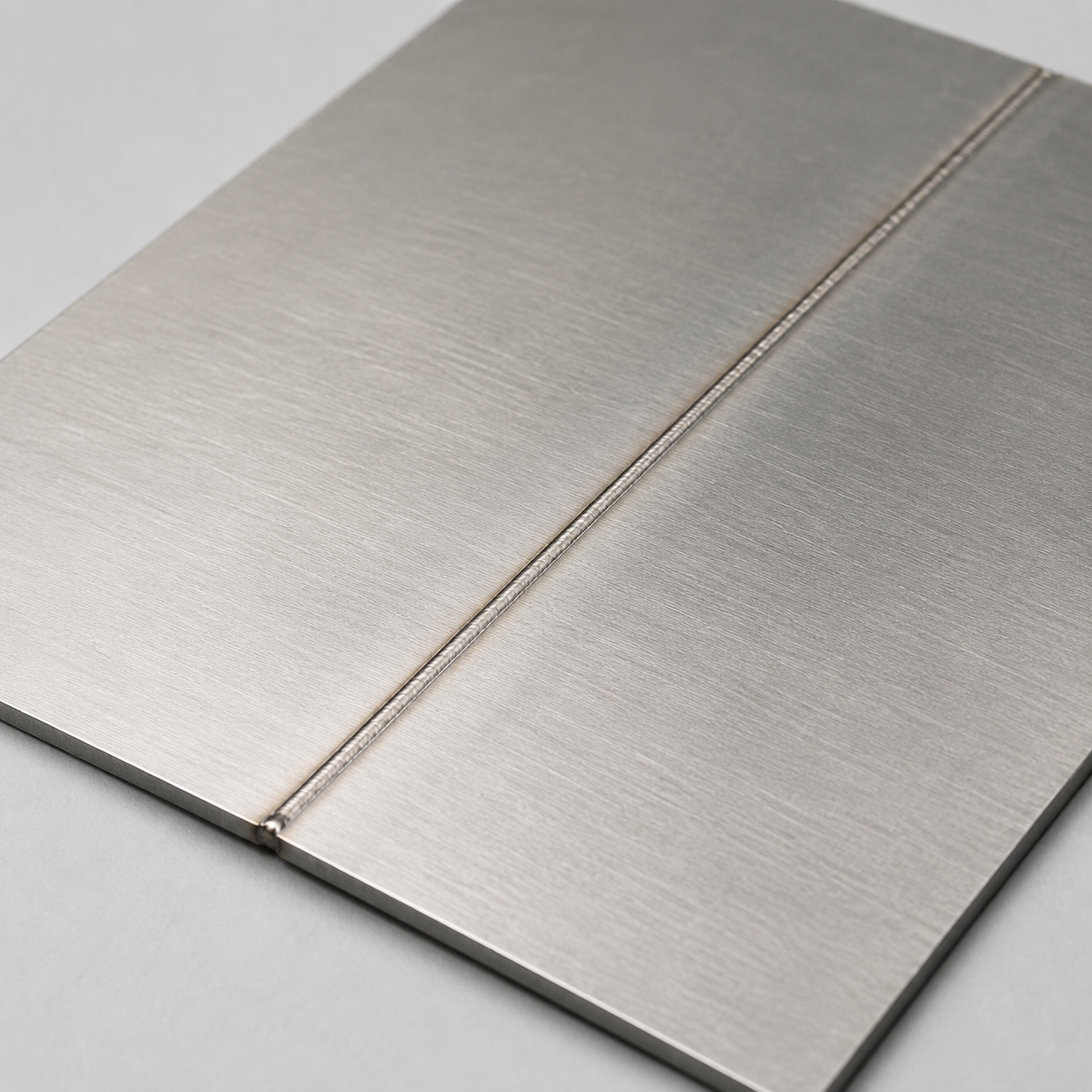

| Stainless Steel | 1 mm | Butt Joint | 1500W | No | 80-100 mm/s |  |

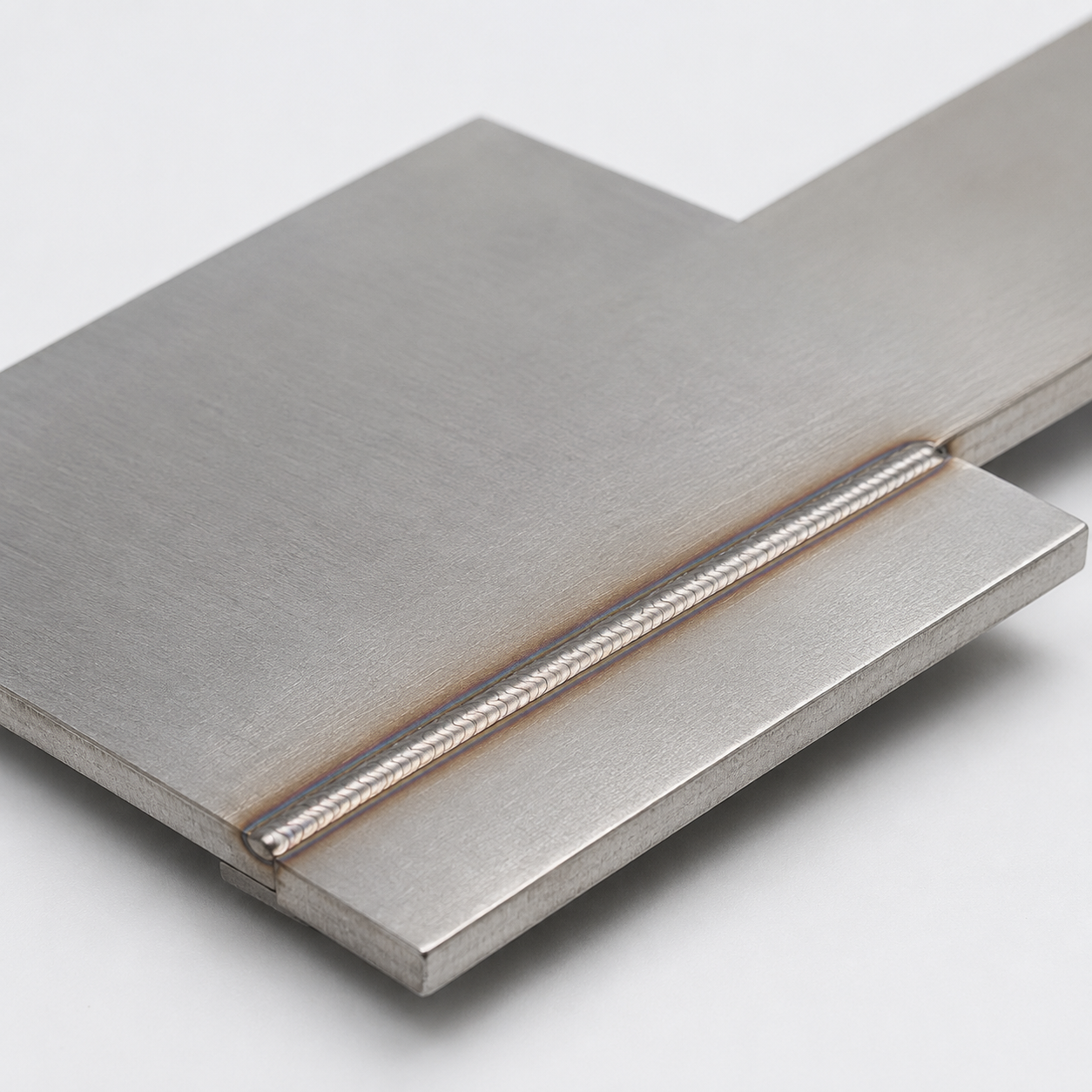

| Stainless Steel | 2 mm | Lap Joint | 1500W | Yes | 60-80 mm/s |  |

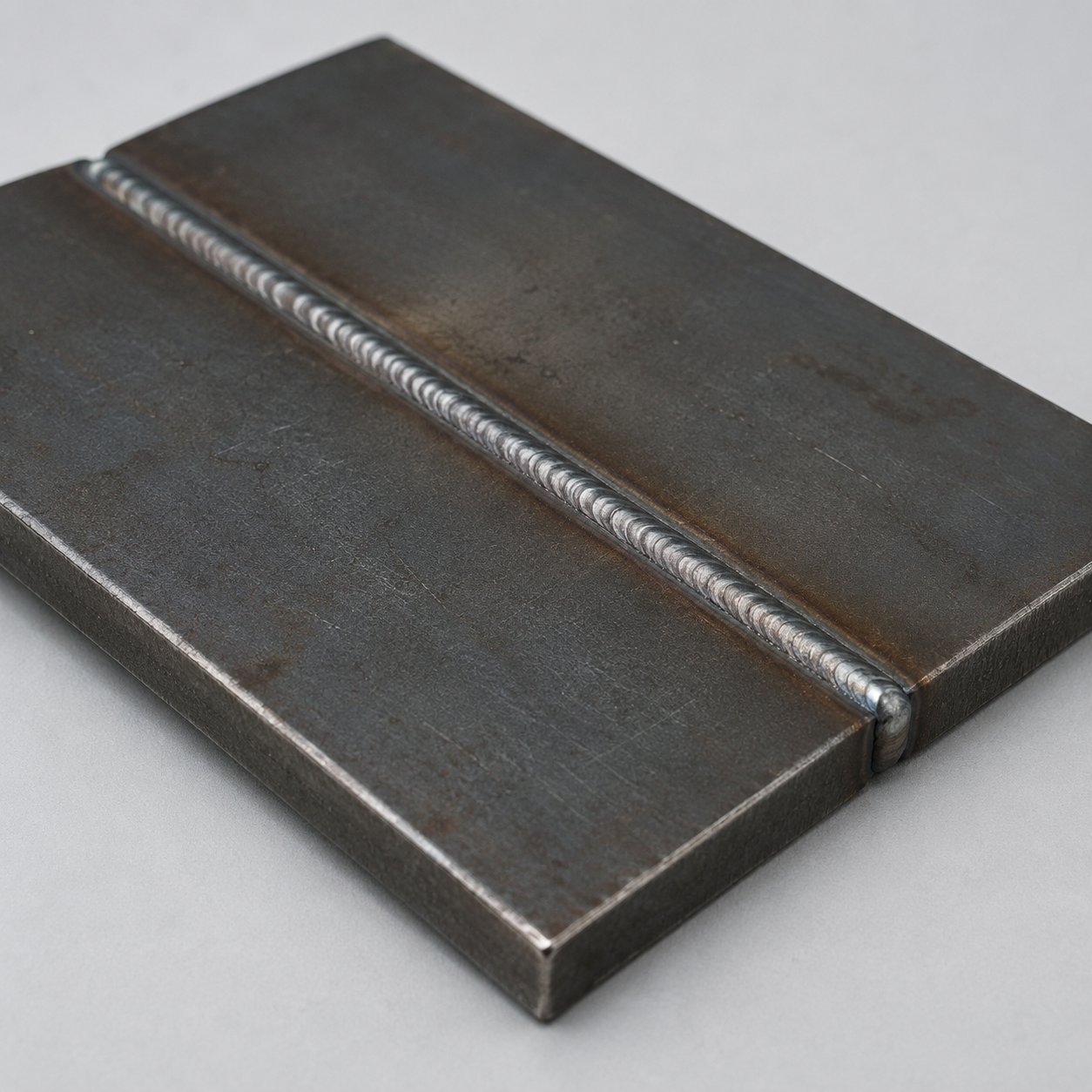

| Carbon Steel | 3 mm | Butt Joint | 2000W | Yes | 50-70 mm/s |  |

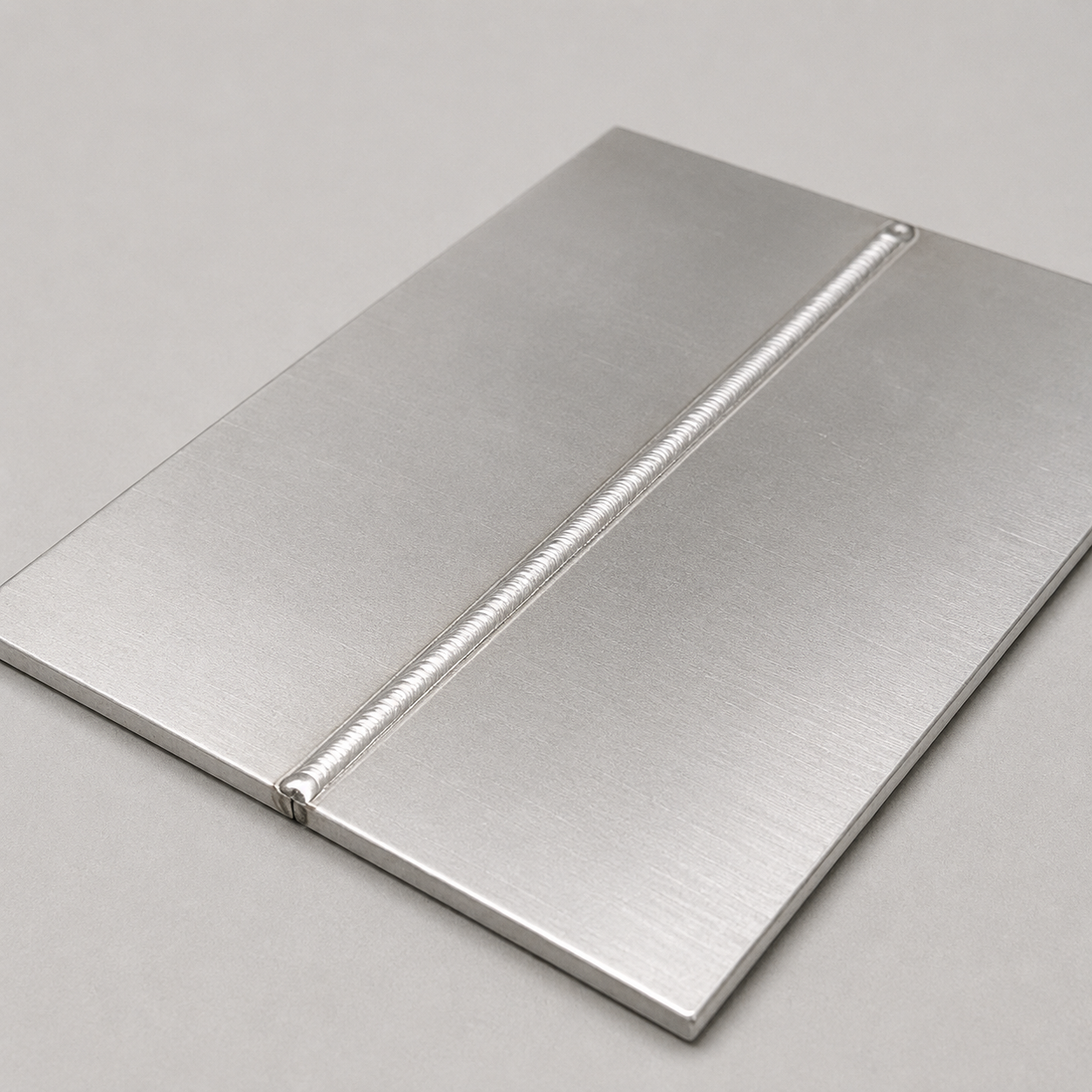

| Aluminum | 2 mm | Butt Joint | 2000W | Yes | 40-60 mm/s |  |

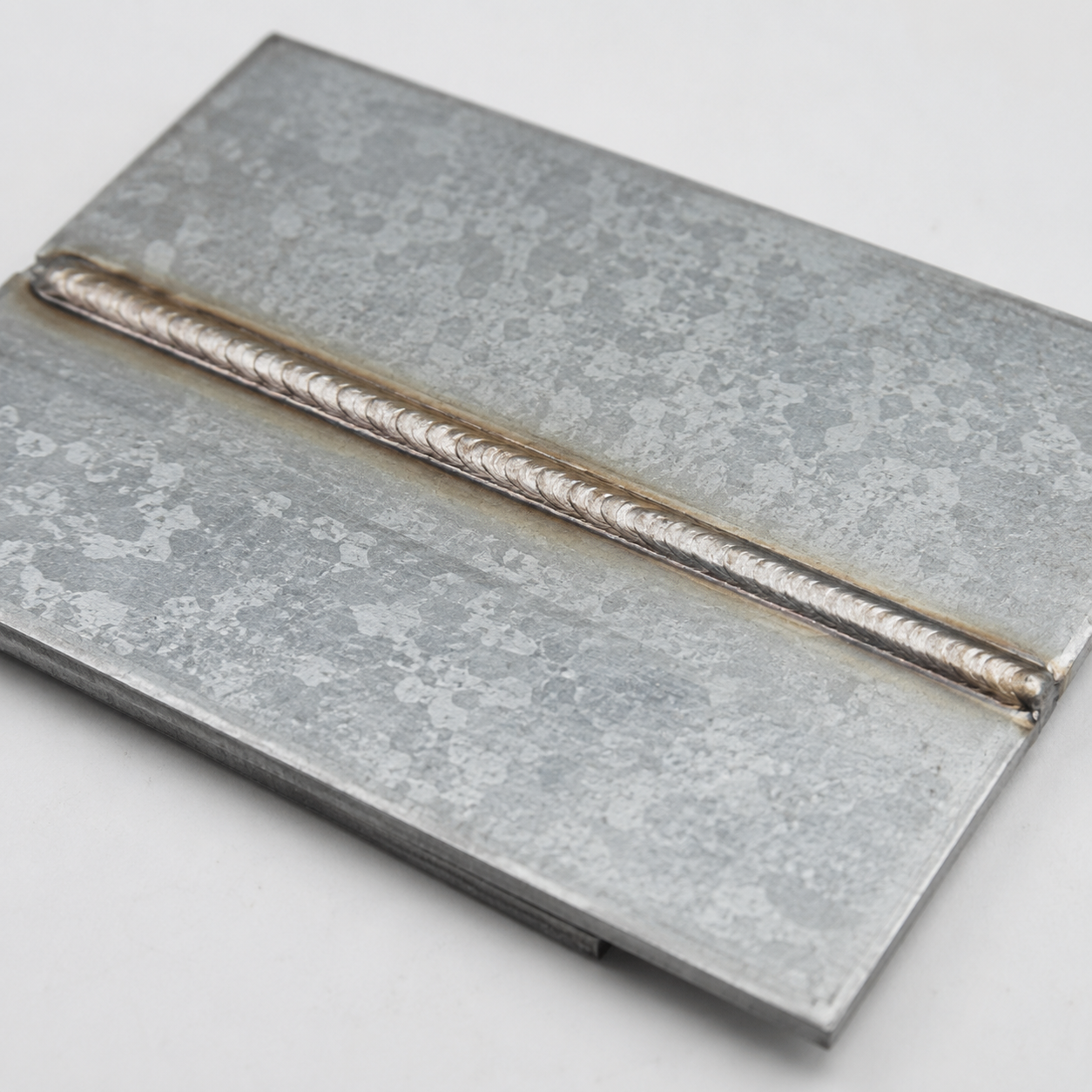

| Galvanized Steel | 2 mm | Lap Joint | 1500W | Yes | 60-80 mm/s |  |

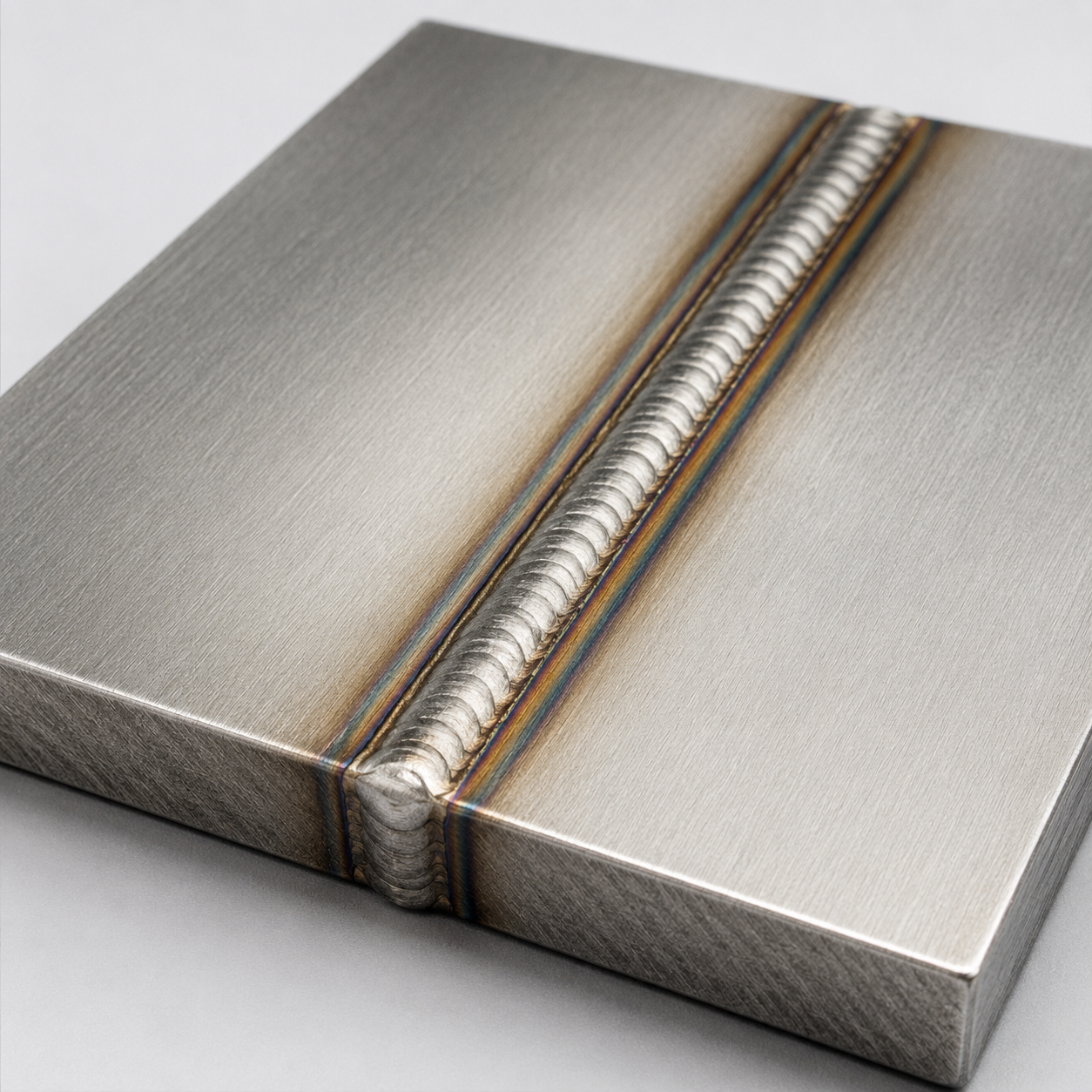

| Stainless Steel | 5 mm | Butt Joint | 3000W | Yes | 30-50 mm/s |  |
Need Help Choosing a Configuration?
Tell us your material, size/thickness and daily output.
Specifications
General
| Model | FL-WW |
|---|---|
| Laser power | 1500W / 2000W / 3000W |
| Recommended welding thickness | 2 / 4 / 6 mm |
| Cooling | Water cooling |
| Machine size | 1000 × 620 × 1150 mm |
| Machine weight | 250 kg |
| Whole-machine warranty | 1 year |
Electrical and Environment
| Input voltage | 220V / 380V |
|---|---|
| Frequency | 50 / 60 Hz |
| Operating temperature | 5–40°C |
| Relative humidity | ≤70% |
| Installation | Stable power, grounding, ventilation, and local laser-safety controls required |
Electrical and Safety Details
| Rated Power Consumption | According to laser power configuration |
|---|---|
| Safety Requirement | Proper grounding, safety goggles, ventilation |
Components
Fiber Laser Source
Raycus or MAX options provide stable laser output; availability and final brand are confirmed in the quotation.
Control System
A touchscreen interface manages power, speed, scan width, gas, and process settings.
Welding Head
SUP or EM Power options support handheld welding, cleaning, and cutting with application-specific optics and nozzles.
Industrial Chiller
Hanli or S&A options provide the cooling capacity required for continuous industrial operation.

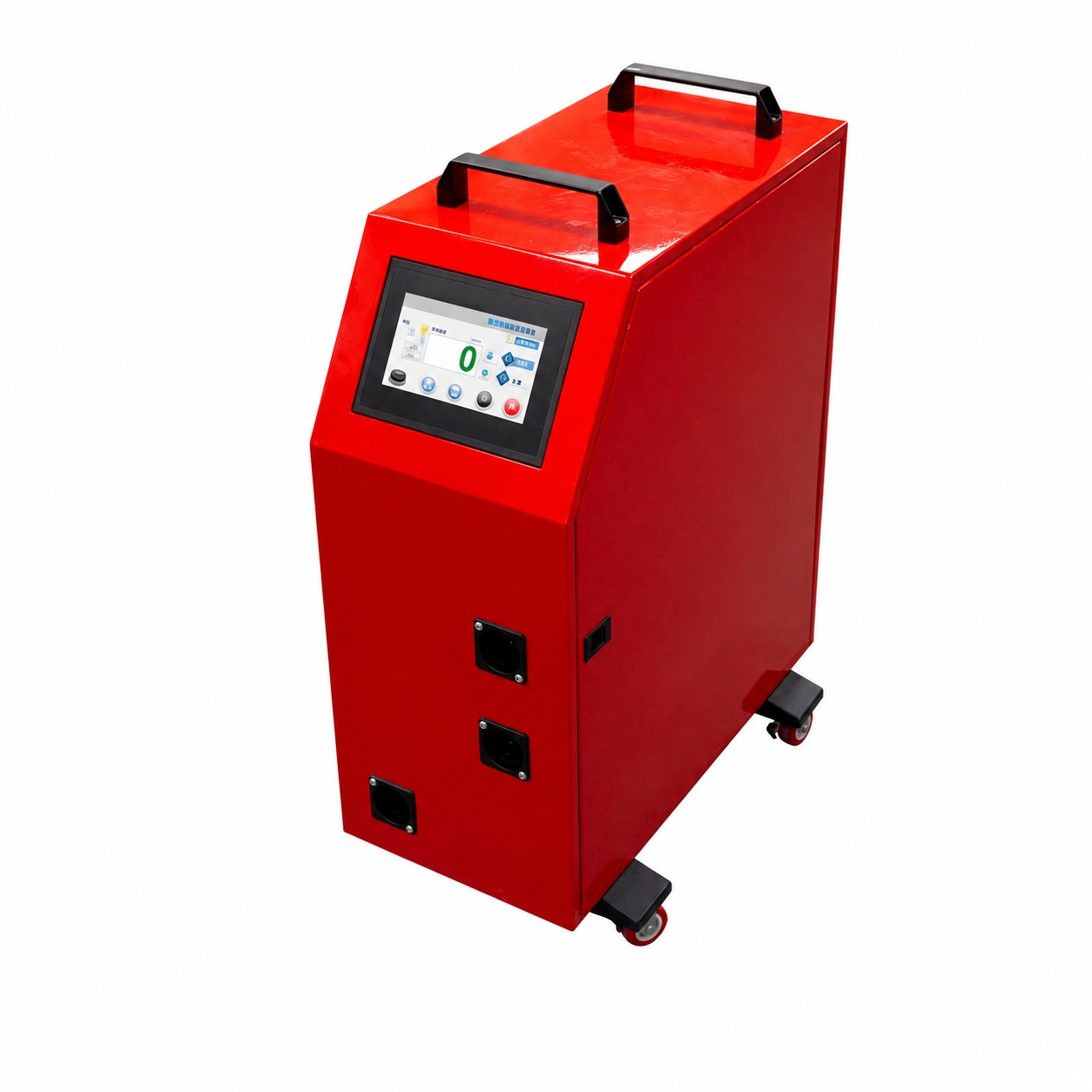

Wire Feeder
Automatic wire feeding supports consistent filler delivery; double-wire configurations are optional.
Electrical System
Schneider or CHINT components support stable power distribution and maintainable electrical control.
Configuration Options
- 3-in-1 or 5-in-1 process configurations
- Double-wire feeder
- Alternative welding head
- Laser source and control-system options
- Voltage, interface language, machine color, OEM branding, and export packing
Standard Supply
- Water-cooled laser welding machine
- Fiber laser source and handheld welding head
- Industrial water chiller and intelligent controller
- 10 m fiber cable and automatic wire feeder
- Tool kit, user manual, protective lenses, and foot switch
Service
| Stage | Customer Provides | FerroLaser Delivers | Typical Time |
|---|---|---|---|
| Requirement review | Material, dimensions, output, destination, voltage | Configuration and quotation recommendation | 1 working day |
| Configuration and testing | Samples, drawings, acceptance requirements | Test video, sample, or report as agreed | 2 working days |
| Packaging and shipping | Trade terms and destination port | Export packing, documents, logistics arrangement | About 7 working days |
| Installation and support | Site conditions and responsible personnel | Installation guidance, training, and after-sales support | Project dependent |
Online support is available through email, WhatsApp, WeChat, video conference, and remote diagnosis. Final lead time, warranty scope, and service terms are defined in the signed quotation or contract.
Application Examples

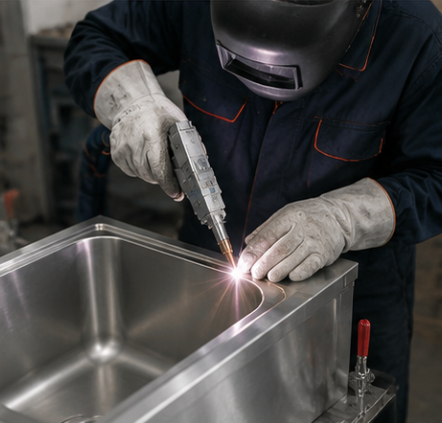

Kitchen Equipment Manufacturer · Southeast Asia
A 3000W configuration was applied to stainless-steel sink production to improve weld appearance and reduce follow-up polishing. Final acceptance evidence is supplied per project agreement.

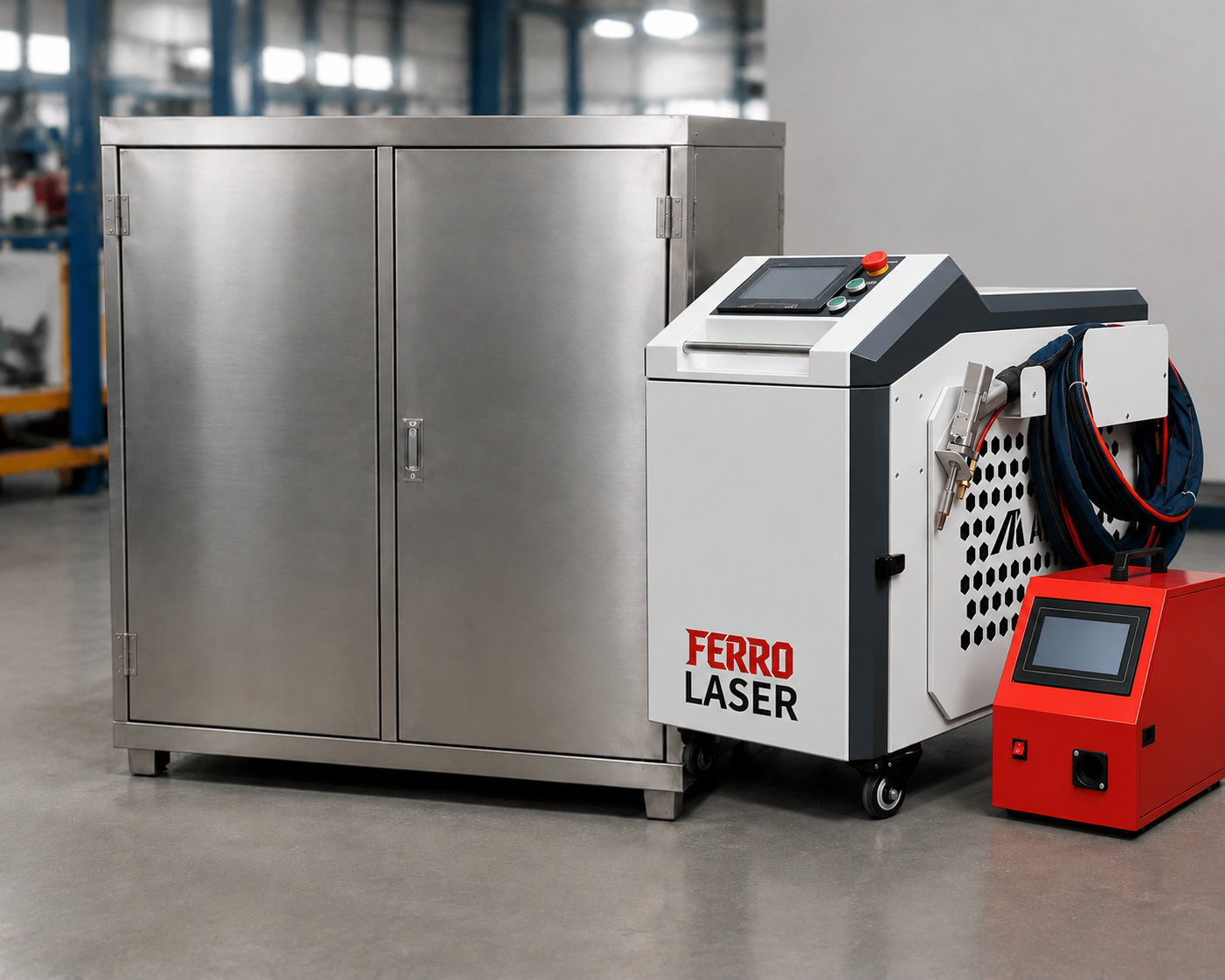

Metal Fabrication Manufacturer · Europe
A 2000W configuration was applied to stainless-steel cabinet fabrication. The configuration was selected around the customer’s workpiece and production requirements.
Customer Case Details
| Field | Kitchen Equipment Manufacturer | Metal Fabrication Manufacturer |
|---|---|---|
| Market | Southeast Asia | Europe |
| Challenge | Continuous production with stable welding quality | Improve welding efficiency and reduce labor cost |
| Configuration | 3000W Water-Cooled Handheld Laser Welding Machine | 2000W Water-Cooled Handheld Laser Welding Machine |
| Material / Workpiece | Stainless Steel Sink | Stainless Steel Cabinet |
| Solution | High-speed laser welding with automatic wire feeder | Replace TIG welding with handheld laser welding |
| Verified Result | Smooth weld appearance and reduced polishing workload | Stable welding quality and improved production efficiency |
| Evidence | Customer photos / testing video | Customer photos / welding videos |
FAQ
Which metals can be welded?
Supported applications include stainless steel, carbon steel, mild steel, galvanized steel, aluminum, brass, copper, titanium, nickel alloy, and other metals subject to process testing.
Is the machine easy to learn?
The handheld design and touchscreen controller simplify basic operation. Training time depends on the operator, application, and local safety requirements.
What laser power options are available?
Standard options are 1500W, 2000W, and 3000W. FerroLaser recommends power after reviewing material and thickness.
What is the maximum welding thickness?
Capacity depends on power, material, fit-up, joint design, and process settings. The source guideline is approximately 2 mm for 1500W, 4 mm for 2000W, and 6 mm for 3000W; confirm the actual application with sample testing.
Can one machine perform multiple functions?
Yes. The 4-in-1 configuration combines welding, cleaning, cutting, and weld seam cleaning.
What is the delivery time?
Standard configurations are typically prepared in about seven working days after payment confirmation. Customized machines may require more time.
How is the machine packaged?
The machine is prepared in an export plywood case with shock, moisture, and water protection appropriate to the agreed shipping method.
Do you provide training?
Yes. Available support includes manuals, installation videos, online training, remote guidance, and technical assistance.
What warranty is provided?
The source document specifies a one-year whole-machine warranty. Exact component coverage and exclusions follow the signed quotation or contract.
Can the machine be customized?
OEM and ODM options include logo, color, interface language, voltage, packaging, and branding, subject to engineering confirmation.
